1967 C2 Corvette Hydraulic Master Cylinder Kit with Billet Reservoir

1967 C2 Corvette hydraulic master cylinder kit with a billet reservoir. Designed & engineered for retrofitting clutch hydraulics into your C2 Corvette. (No Universal Bracket) Direct mount onto all original 4-speed chassis. No flexing of bracket. Quality Tilton 78 Series Master Cylinder.

Includes

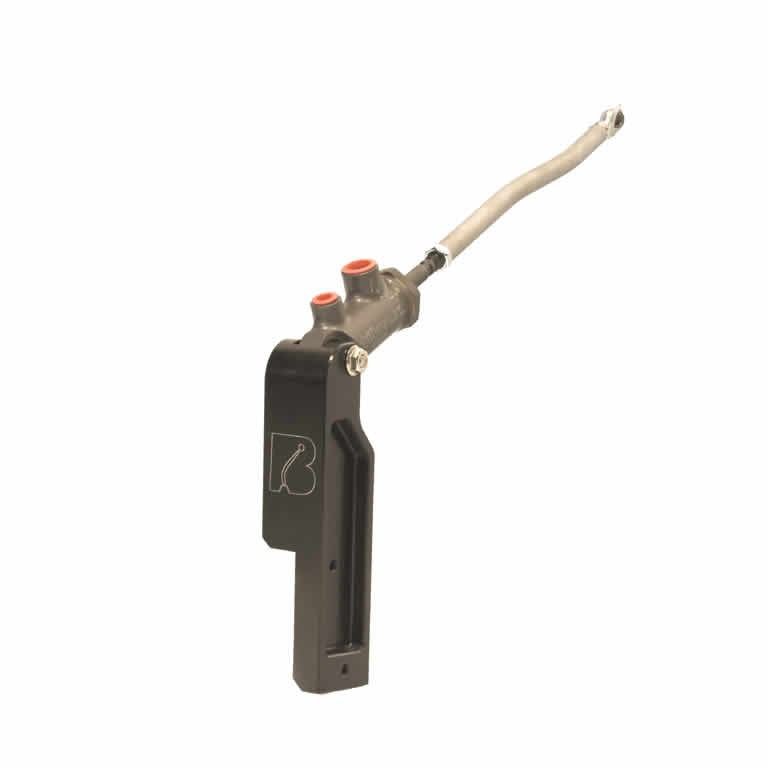

• Master Cylinder with proper stroke to be used with factory pedal assembly
• Billet frame bracket to locate the master cylinder (must have an original manual frame or add the original z-bar bracket onto an automatic frame)
• 1 -4AN 24" braided line with -4AN male to male adapter for master cylinder to remote reservoir hook up
• 1-12" braided line with -4AN
• 1 -4AN 90 degree fitting for slave cylinder supply line (Slave cylinder not included or line)

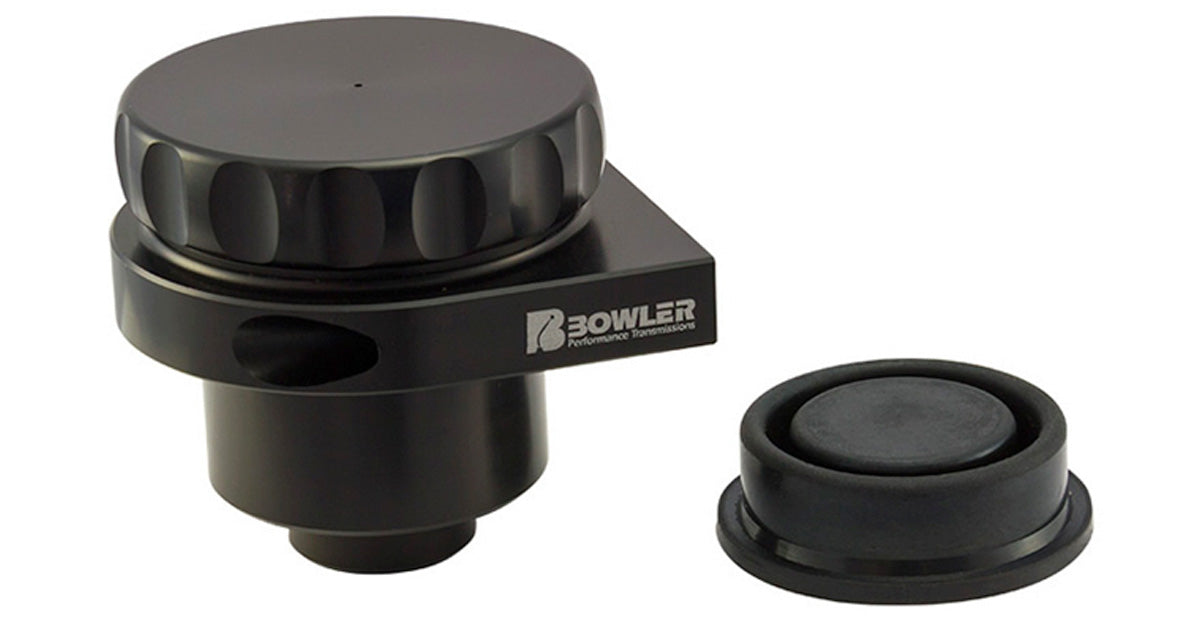

• Black anodized billet remote reservoir
• 1967 pedal bracket
• Mounting hardware and fittings

Does Not Include

• DOT 3 fluid
• Pedal stop (ensure a pedal stop is mounted)

Installation Instructions
