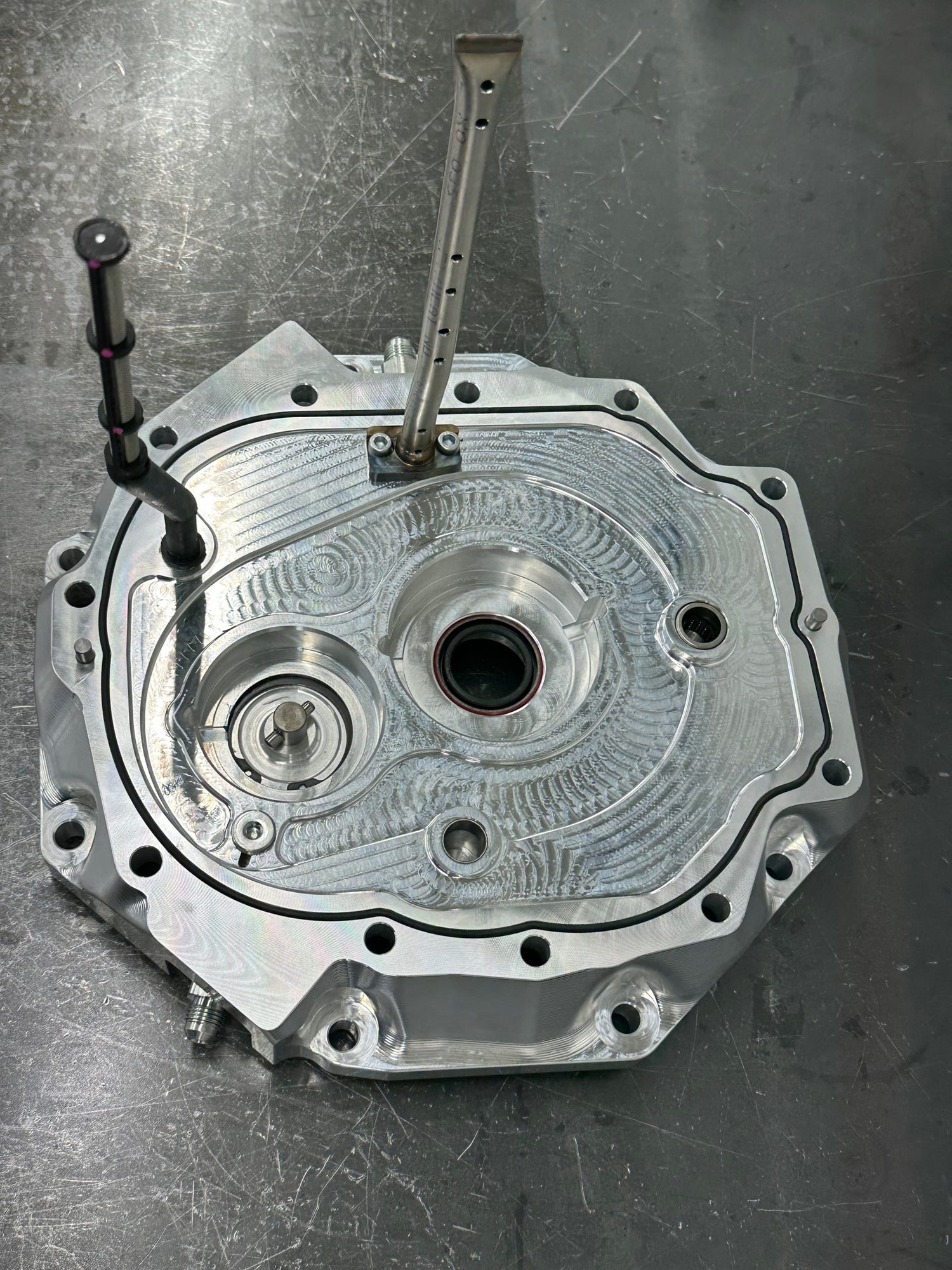

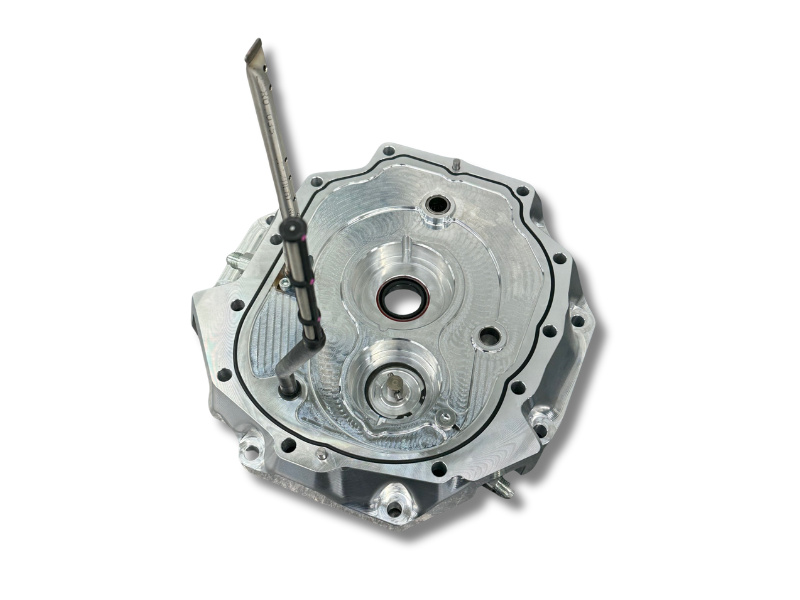

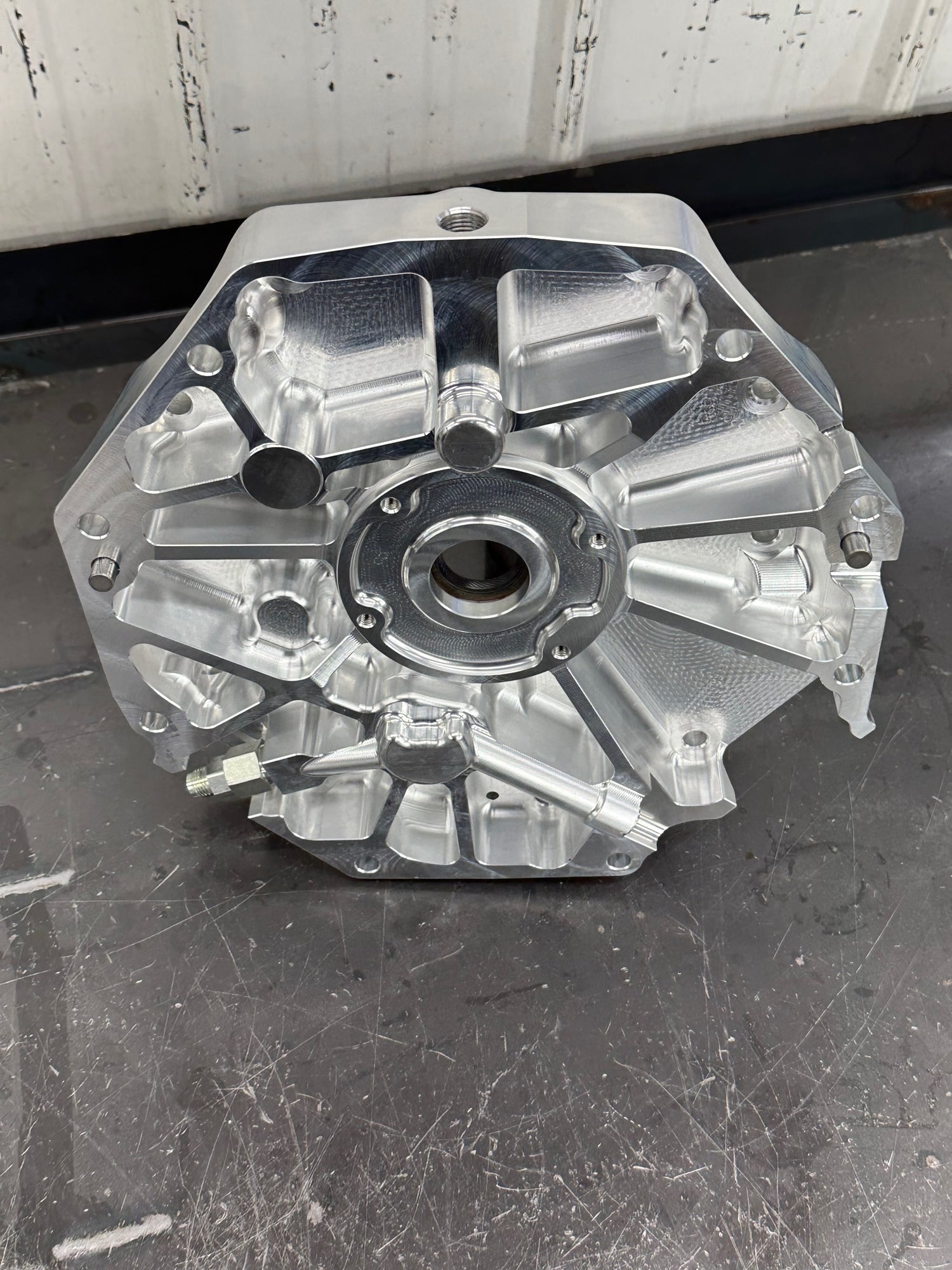

Bowler T-56 Magnum Front Cover with Pump and spray bar - Billet

COMPLETE BILLET PUMP ASSEMBLY (INTERNAL DESIGN) FOR THE GM T-56 MAGNUM TRANSMISSION WITH THE 2.66 RATIO FIRST GEAR.  THIS WILL NOT WORK WITH THE 2.97 RATIO.    YOU CAN SPECIAL ORDER A MACHINED CLUSTER GEAR FOR THE 2.97 GM UNITS FOR ADDTIONAL COST IF NEEDED.

* INTERNAL FILTER AND SPRAY BAR INCLUDED

* DESIGNED WITH AND O-RING, NO GASKET OR SILICONE REQUIRED.

* NEW SHIFT RAIL BUSHING AND BEARING INSTALLED

* NEW FRONT SEAL INSTALLED

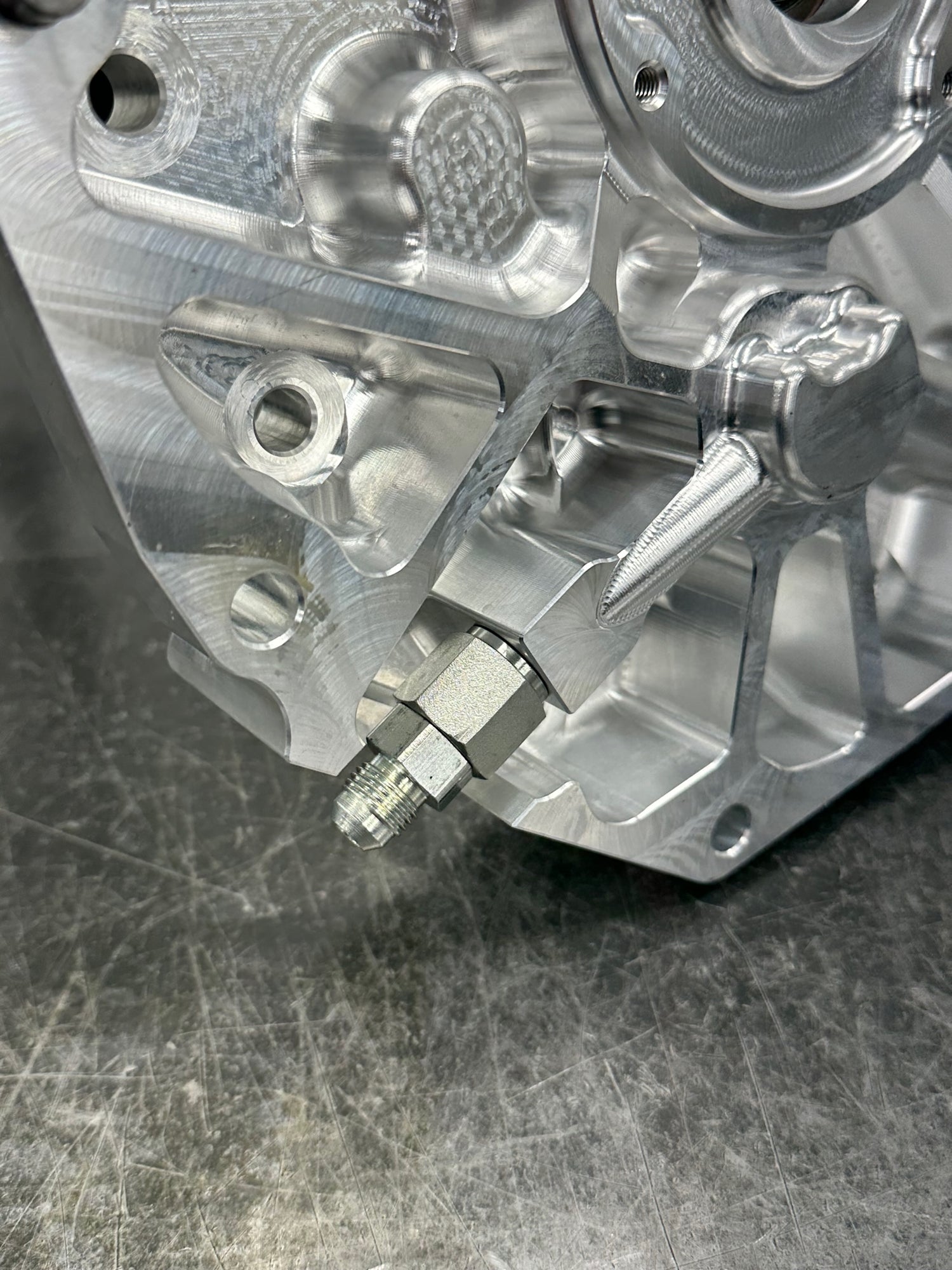

* -6AN FITTINGS INCLUDED BUT NO BELLHOUSING INCLUDED.
* THE COVER WITH PUMP WILL WORK FOR THE GM ONLY TR-6060 TRANSMISSIONS, BUT A BELL HOUSING IS REQUIRED (SOLD SEPARATELY)
* WILL NOT WORK FOR FORD MAGNUM UNITS OR BORG WARNER T-56 NON MAGNUM UNITS.  IF YOU ARE NOT SURE WHAT YOU HAVE, PLEASE CONTACT US FIRST.

*** WILL WORK WITH FORD UNITS, HOWEVER MUST PURCHASE 4720000 BEARING (GM BOLT ON STYLE TILTON THROW OUT BEARING)

** RECOMMENDED FOR A SKILLED MECHANIC OR TRANSMISSION SHOP TO INSTALL.  YOU MUST CHECK AND RE-SHIM THE END PLAY WHEN INSTALLING.    WE DO NOT RECOMMEND THIS FOR A WEEKEND DYI PROJECT.
