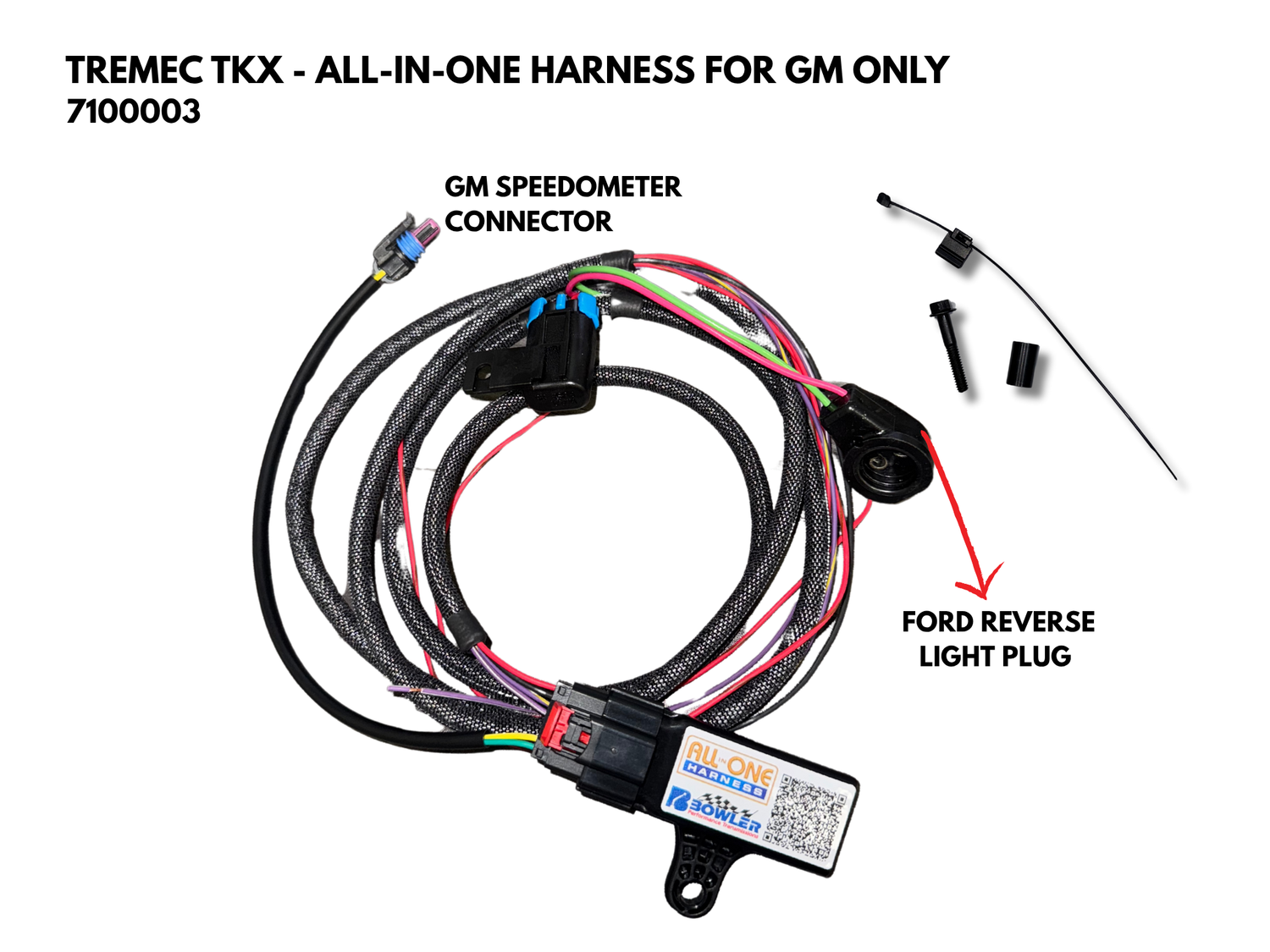

Tremec TKX - All-in-One Harness For GM Only - Perfect for GM Connect and Cruise

 GM TKX ONLY

The All-in-One harness solution for the Bowler Tremec TKX GM transmission comes equipped with all the connections pre-wired into one harness for simple installation and ease of use. The small epoxy sealed controller is mounted to the VSS output using the existing bolt, and once the unit is powered up you will be able to connect via Bluetooth to your Apple or Android smartphone using our free app. The app will give you the ability to customize the input and output settings for each feature to ensure proper operation in your vehicle. The All-in-One harness eliminates the need for any

additional equipment to reproduce any required speed pulse output, this is perfect when you are using a GM Connect and Cruise LS or LT motor which requires a specific GM speed pulse input, which the Tremec TKX 5 Speed cannot supply the correct input. With the Bowler All-In-One harness this is the perfect addition to make this a true plug and play solution with the reverse light and vehicle speed sensor harness built into the harness. Prior to the development of the All-in-One harness, you would need up to 3 separate parts to perform all the same functions wrapped up in this
one harness solution. Getting the correct speed sensor output is the most frustrating and confusing portion of the installation. The more technology we incorporate into our hot rods these days sometimes requires specific input signals to allow everything to function correctly. There may be scenarios where you are using a speedometer that requires one signal and an ECM that requires a completely different signal.  With the 2 speed outputs that are available in the All-in-One harness you can independently control the output of each one, further eliminating any need for additional equipment and connections. The Bowler Tremec TKX All-in-One Harness utilizes a small, built in,
epoxy sealed box that will control your speedometer pulse output and provide harness for your reverse lights with power and grounding for each function through a switched +12v circuit and a wire connected to the negative battery post or engine block. The harness is equipped with 2 speed sensor outputs; the speed sensor outputs generate a square wave signal that goes from about -5 to roughly +5 volts, varying in frequency as the speed changes. But, you say, my ECM input needs a positive only signal. No problem! The output will automatically shift and give you 0 to +10 volts. The
2 speed sensor outputs are completely independent and can be calibrated separately with any pulse count and ratio you want.  So, these two outputs should pretty much be able to drive any common speedometer, cruise control, or ECM. This will give you much greater flexibility in the components you are able to use and requires less time wiring everything up. The reverse lights are powered by a single output wire connected to the positive side of your reverse lights; grounding of those lights should be local to the bulb socket. There is no easier solution for setting up your Tremec TKX
transmission! The Bowler Tremec TKX All-In-One Module is pre-set for a GM 40 pulse output on one and 16 pulse output on the other.  This function can be adjusted with your iOS or Android device.

Includes wiring for reverse lights and vehicle speed sensor.

Click here to view installation instructions.
