The short answer: choose based on how much torque your engine makes and what engine you have. The 4L60E family — which for Bowler builds includes the 4L60E, the stronger 4L65E, and the 4L70E and 4L75E architecture — is the lighter, more compact overdrive automatic for street-driven classics. The 4L80E family — the 4L80E and the even tougher 4L85E — is the heavy-duty option for higher torque output engines. The first item to determine is the torque rating and the engine, then sort out transmission size and budget.
Why does the choice come down to torque?
Both families are four-speed automatics with an overdrive top gear, which is the whole point of the swap: a lower cruising RPM so your classic isn't screaming down the interstate, plus modern electronic shift control. Where they differ is how much abuse they'll take. The 4L60E is the lighter, more compact unit that traces back to the 700-R4 family. The 4L80E is a physically larger, heavier gearbox derived from the TH400 transmission, with beefier internals to match.
If you put more torque through a transmission than it was built to hold, the clutches and bands can't hold: they slip, heat builds, and the transmission fails prematurely. Buy more transmission than you need and you've spent extra money and often signed up for more tunnel and crossmember work than the smaller case would have required. That's why torque is the first question we ask at Bowler Transmissions before anything else.
The 4L60E family: when is it the right call?
For a street-driven classic making moderate power, the 4L60E family is usually the sensible pick. It's compact, it fits more factory tunnels with less cutting, and it gives you overdrive without the bulk of a truck transmission. Bowler doesn't build just one version — the family spans several combinations so you can match the unit to your engine:
- Tru-Street 4L60-E for small-block and big-block Chevy (SBC/BBC), up to 450 lb-ft.
- Tru-Street 4L60-E for LS engines (up to 400 lb-ft), with the correct LS converter and calibration.
- The 4L65-E (up to 550 lb-ft) sits within the same family — the heavier-duty option that shares the compact case but adds clutch capacity and 5-pinion planets.

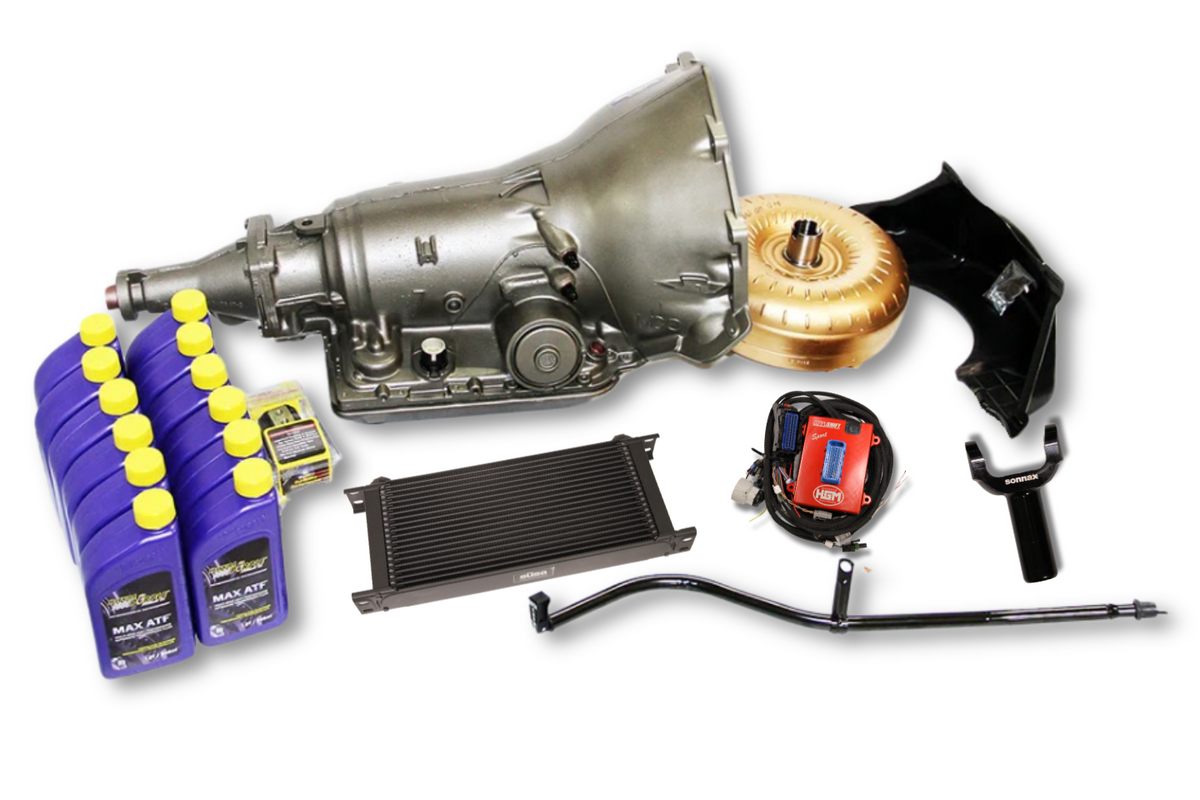

These aren't parts-store rebuilds. Each one is custom-built to your combination and comes as a package that includes a custom stall lock-up torque converter, an external transmission cooler with -6AN fittings, a COMPUSHIFT electronic controller, plus a Sonnax 1350-series slip yoke, an Energy Suspension mount, a speed sensor, and Royal Purple Max ATF. Every unit is 100% dyno-tested before it ships. Compare the full family here.
The 4L80E family: when should I step up?
Once your combination is making real power — 650 lb-ft of torque and higher — the 4L60E is the wrong tool. The 4L80E family is the heavy-duty answer, perfect for modern LS, LT, big-block or small-block builds, and we also offer many bellhousing conversions for Mopar Hemi and Ford Mod Motors. Bowler builds it across a wide range of engines and torque levels. What you're paying for is durability: a billet 300M input shaft, a triple-disc 265mm billet stall converter, and updated Sonnax components. Every unit ships with an external cooler, a COMPUSHIFT controller, Royal Purple fluid, and full dyno testing. The family covers, among others:
- 4L80E for SB/BB engines (up to 650 lb-ft).
- 4L80E for LS engines (up to 800 lb-ft).
- 4L80E for Gen V LT (LT1/LT4/LT5) engines.
- Mopar Gen III Hemi, Hellcat, and Hellephant packages.
- 4X4 and off-road 4L80E packages.
The trade-off is size and cost. The 4L80E is longer and a little taller, so it usually needs more tunnel clearance for the larger case. Neither the 4L60E nor the 4L80E package includes a driveshaft or crossmember, so budget for those separately.
What if I'm making really big power?
For combinations past the 4L80E's range, Bowler builds the 4L85E (up to 1,000 lb-ft) — the strongest member of the family — with a billet input shaft and a triple-lock billet converter, offered for several engine families:
Isn't there more to it than torque?
Torque sets the floor, but two other things decide the final answer:
- Physical room. The bigger 4L80E case needs more tunnel and crossmember clearance. If your car is tight and your power level is moderate, the 4L60E family fits with less fabrication.
- Electronic control. All of these are electronically shifted, so they need a controller to work behind an older engine. Every Bowler automatic package ships with a COMPUSHIFT controller.
Match those to your build and the choice usually makes itself: torque rating first, then engine type, then space and budget.
Frequently asked questions
Can a 4L60E handle an LS and LT swap? Yes — Bowler builds 4L60E-family units specifically for LS and LT engines with the correct converter, bellhousing, and calibration. The SBC/BBC 4L60E is built for small- and big-block Chevy engines instead. For higher-output LS or LT motors, step up to the 4L80E or 4L85E package.
Do these transmissions come with everything I need to run them? They include the matched converter, external cooler, electronic controller, fluid, and mount, and are dyno-tested. They do not include a driveshaft or crossmember, which are specific to your chassis.
Will an overdrive automatic lower my highway RPM? Yes. Both families are four-speeds with an overdrive top gear, so fourth gear drops engine speed at cruise compared with a non-overdrive three-speed.
How long does it take to get one? Because each unit is custom-built to your combination, plan on a 12–14 week lead time on all of Bowler's automatic transmissions.
How do I know which torque rating fits my engine? Use a realistic crank torque figure for your combination and stay under the rating. If you're between units or unsure, Bowler Transmissions builds each one to a tech sheet so the converter and calibration match your car — reach out and we'll help you land on the right unit. Each transmission is meticulously hand-built by one technician from start to finish and dyno-tested as a matched setup before it ships, and backed by the best warranty in the industry.
