Bowler Transmissions  |  SKU: 4730500

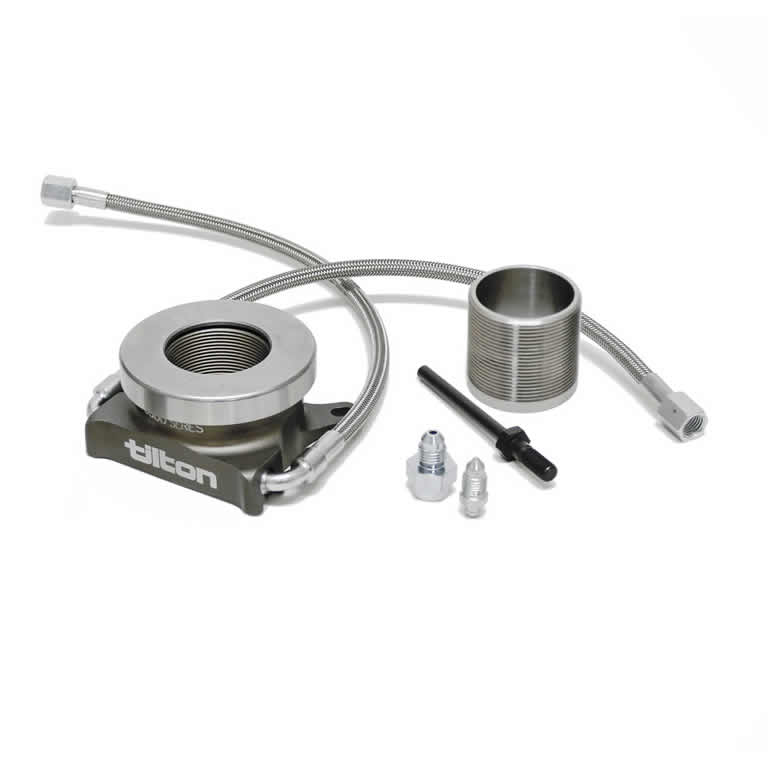

Tilton Adjustable Hydraulic Throw-Out Bearing (Ford - TKX, TKO 500/600, Top Loader)

$441.00
Shipping calculated at checkout.


Tilton adjustable hydraulic throw-out bearing for Ford Tremec TKX, TKO 500/600, Top Loader 4-speeds

Features

  • Billet aluminum body and piston precision machined at Tilton
  • Stainless steel threaded sleeve offers nearly 1.25" of adjust-ability
  • High temperature mono seal design features a quad tensioner to ensure proper seal tension and the highest reliability
  • Constant contact design self adjusts for clutch wear and maintains the same pedal feel throughout the clutch's life
  • Newly designed swivel fittings have been thoroughly tested to insure against leakage
  • High-quality flat face bearing with 1.71" - 3.03" contact diameter fits most 8.5" - 11" bent-finge and lever-type clutches
Includes
  • Hydraulic release bearing, stainless steel adjustment sleeve, steel bolt on guide tube, steel braided supply and bleed lines, anti-rotation bolt and high-strength transmission bearing retainer bolt.
Applications
  • Ford - Tremec TKX, TKO 500/600, & Toploader 4-speeds
  • 8.5" - 11.0" bent-finger and lever-type clutch (most)
  • Recommend using 3/4" bore master cylinder with 1.4 " stroke.
