Braided Cooler Line Kit 4L80E (90 Degree Ends, 1/4" NSP Fittings)

Braided Cooler Line Kit with 90 Degree Hose Ends and 1/4" NSP Fittings for 4L80E

Specifications

• Inside Diameter: .34
• Outside Diameter: .55
• Max PSI: 750
• Min bend radius: 2.5"

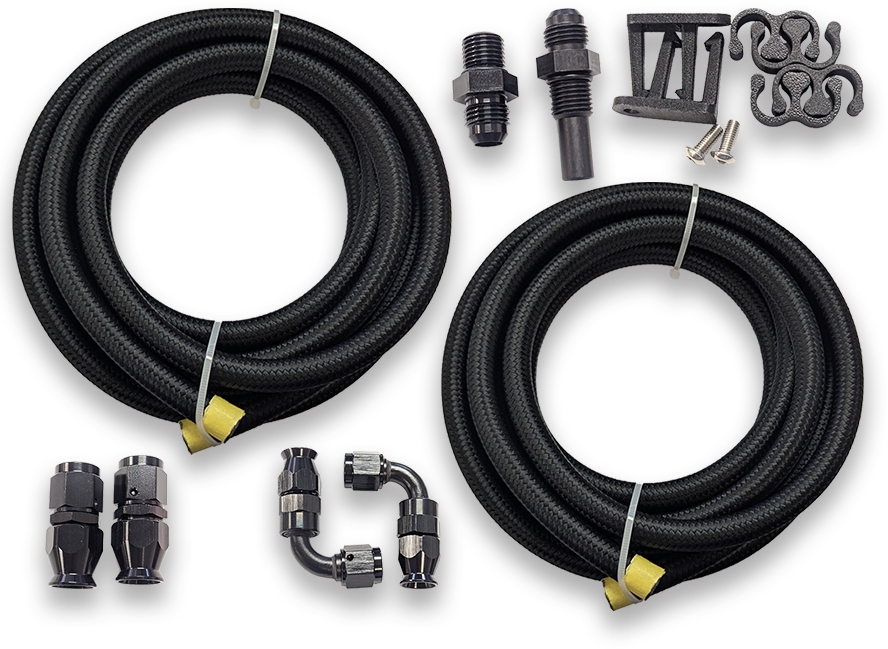

This kit includes:

• (2) PTFE HOSE END -6 AN STRAIGHT BLACK
• (2) PTFE HOSE END BLACK 90' -6AN
• (2)  PTFE BLACK BRAIDED COOLER LINE -6 HOSE 10 FOOT (NOT TO BE USED AS FUEL LINES)
• (1 set) 1/4" NPSM TO -6AN COOLER LINE FITTINGS; 4L80-E LATE FRONT & REAR COOLER LINE FITTING FOR '96-UP
• (1) DUAL -6AN COOLER HOSE "M" CLIP KIT: Specifically designed for 6AN PTFE braided cooler hoses, offering a clean, secure, and professional-looking installation every time. Made from high-temp, carbon fiber-filled nylon, these clips are built to withstand the heat and hold strong under pressure.

The rear cooler line is a special fitting and must be used with the lube tube to avoid transmission damage.

* The buyer is responsible to determine which you need, remove the stock adapters, and measure the diameter of the threads.  If measurement is 0.5568" they are 9/16 - 18. If they measure 0.521", the 1/4 NSPT option, which is the most popular, is required. O-rings included. Made of aluminum and may be anodized.

* Recommended for Aftermarket applications.  Not Recommended for OE Vehicles due to the type of lines, this is intended for aftermarket -6AN lines.*  No cooler or cooler / radiator fittings are included. * Only includes the fittings for the transmission case.  This is intended for aftermarket transmission coolers with -6AN Fittings.
