Braided Cooler Line Kit 4L80E (90 Degree Ends, 9/16-18 to -6 AN)

Braided Cooler Line Kit with 90 Degree Hose Ends and 4L80E and 9/16-18 to -6 AN Fittings

Specifications

• Inside Diameter: .34
• Outside Diameter: .55
• Max PSI: 750
• Min bend radius: 2.5"

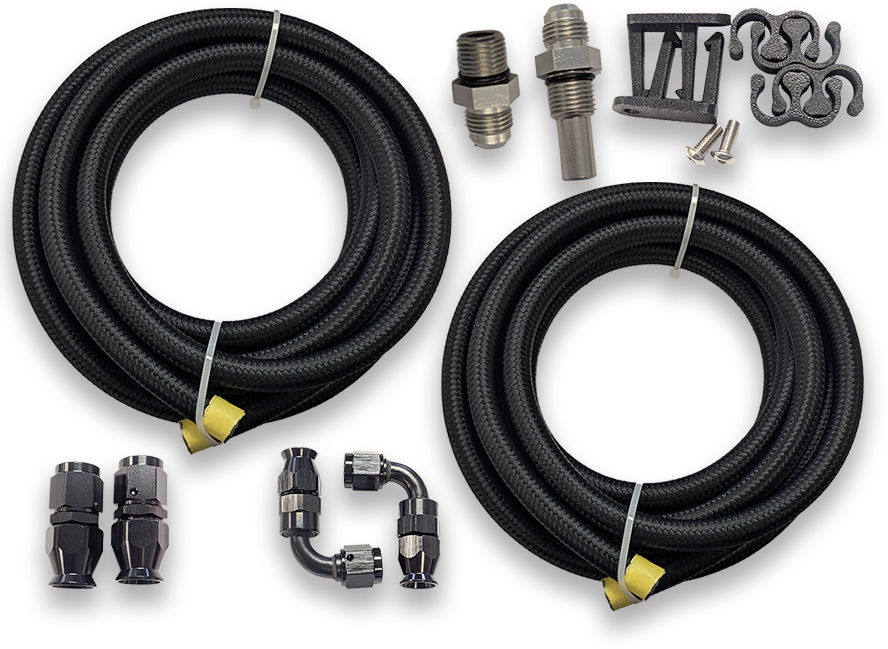

This kit includes:

• (2) PTFE HOSE END BLACK 90' -6
• (2) PTFE HOSE END -6 AN STRAIGHT BLACK
• (2)  PTFE BLACK BRAIDED COOLER LINE  HOSE 10 FOOT LENGTHS  (NOT TO BE USED AS FUEL LINES)
• (1 SET) 4L80-E (LARGE 9/16" THREADS IN CASE) LATE FRONT & REAR COOLER LINE FITTING FOR '04-UP 4L80E TO -6 AN
• (1) DUAL -6AN COOLER HOSE "M" CLIP KIT: S pecifically designed for 6AN PTFE braided cooler hoses, offering a clean, secure, and professional-looking installation every time. Made from high-temp, carbon fiber-filled nylon, these clips are built to withstand the heat and hold strong under pressure.

This kit only fits 4L80E & 4L85E transmissions *1997 - up. The rear cooler line is a special fitting and must be used with the lube tube to avoid transmission damage.

*The buyer is responsible to determine which you need, remove the stock adapters, and measure the diameter of the threads.  If measurement is 0.5568" they are 9/16 - 18. If they measure 0.521", the 1/4 NSPT option, which is the most popular, is required. O-rings included. Made of aluminum and may be anodized.

* Recommended for Aftermarket applications.  Not Recommended for OE Vehicles due to the type of lines, this is intended for aftermarket -6AN lines.*  No cooler or cooler / radiator fittings are included. * Only includes the fittings for the transmission case.  This is intended for aftermarket transmission coolers with -6AN Fittings.
