GM Universal Aftermarket Braided Cooler Line Kit (45 Degree Ends, 1/4" NSP Fittings)

Braided Cooler Line Kit with 45 Degree Hose Ends

Specifications

• Inside Diameter: .34
• Outside Diameter: .55
• Max PSI: 750
• Min bend radius: 2.5"

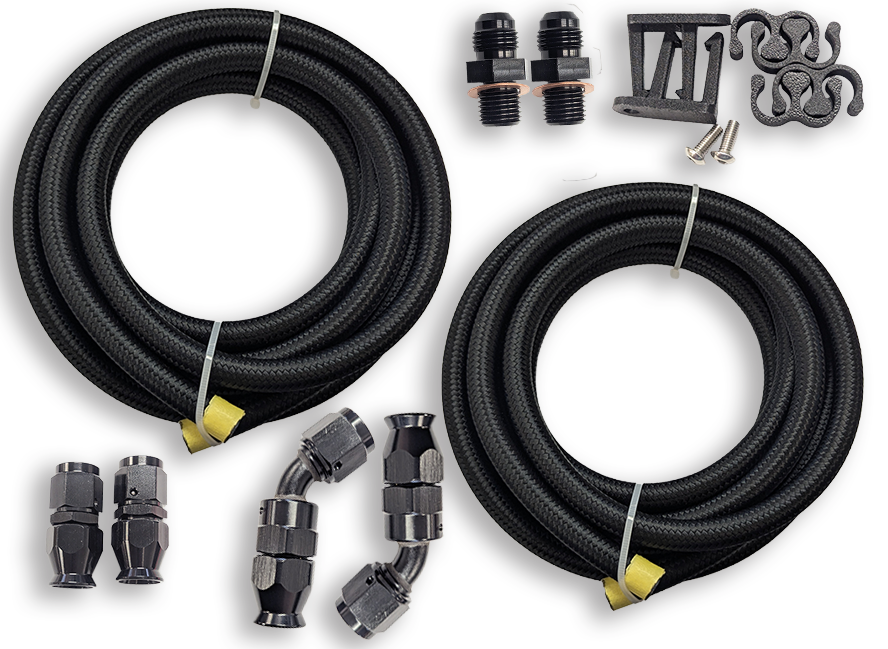

This kit includes:

• (2)  PTFE BLACK BRAIDED COOLER LINE -6 HOSE 10 FOOT LENGTHS
        (NOT TO BE USED AS FUEL LINES)
• (2) PTFE 45 DEG -6 SWIVEL HOSE END BLACK
• (2) PTFE HOSE END -6 AN STRAIGHT BLACK
• (1 set) 1/4" NPSM TO -6AN COOLER LINE FITTINGS.  BLACK ANODIZED
• (1) DUAL -6AN COOLER HOSE "M" CLIP KIT: Specifically designed for 6AN PTFE braided cooler hoses, offering a clean, secure, and professional-looking installation every time. Made from high-temp, carbon fiber-filled nylon, these clips are built to withstand the heat and hold strong under pressure.


They fit any transmission port that is 1/4" NSPT and will convert to a -6AN male fitting. Male straight pipe to male -6AN fitting. *Will fit all 4L80E front cooler line ports. The rear port on '96 - up requires our special 4L80E fitting.

 * The buyer is responsible to determine which you need, remove the stock adapters, and measure the diameter of the threads.  If measurement is 0.5568" they are 9/16 - 18. If they measure 0.521", the 1/4 NSPT option, which is the most popular, is required. O-rings included. Made of aluminum and may be anodized.

* Recommended for Aftermarket applications.  Not Recommended for OE Vehicles due to the type of lines, this is intended for aftermarket -6AN lines.*  No cooler or cooler / radiator fittings are included. * Only includes the fittings for the transmission case.  This is intended for aftermarket transmission coolers with -6AN Fittings.

*THIS PRODUCT IS DESIGNED FOR A CUSTOM FIT APPLICATION.  USE AS AN O.E. COOLER LINE REPLACEMENT MAY REQUIRE MODIFICATIONS TO THE VEHICLE
