GM / Ford Universal -6AN Braided Cooler Line Kit (90 Degree Ends)

Braided Cooler Line Kit with 90 Degree Hose Ends

Specifications

• Inside Diameter: .34
• Outside Diameter: .55
• Max PSI: 750
• Min bend radius: 2.5"

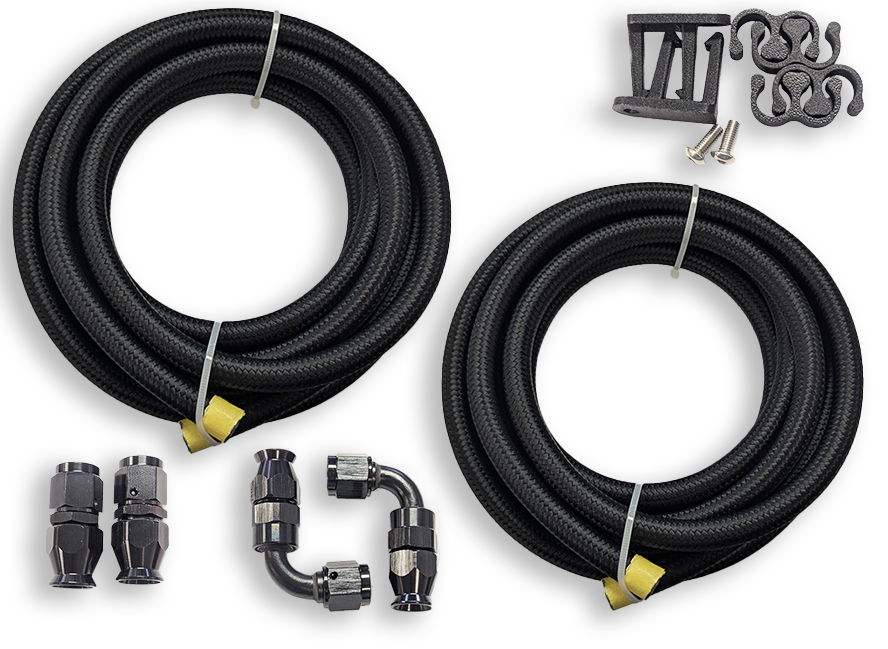

This kit includes: (2) straight hose ends and (2) 90 Degree hose ends, (2) 10 ft black braided hose These Braided Cooler lines will work on most transmissions, including: Aluminum Powerglide, 350, 350C, 200, 200-4R, 700-R4, 4L60E, 4L65E, AOD, AODE, 4R70W

The buyer is responsible to determine which you need, remove the stock adapters, and measure the diameter of the threads.  If measurement is 0.5568" they are 9/16 - 18. If they measure 0.521", the 1/4 NSPT option, which is the most popular, is required. O-rings included. Made of aluminum and may be anodized.

* Recommended for Aftermarket applications.  Not Recommended for OE Vehicles due to the type of lines, this is intended for aftermarket -6AN lines.*  No cooler or cooler / radiator fittings are included. * Only includes the fittings for the transmission case.  This is intended for aftermarket transmission coolers with -6AN Fittings.
