Ford AOD-E/4R70W Performance Transmission for SBF Engines (up to 600 lb-ft torque)

Custom built to your specifications. Please complete our Automatic Transmission Tech Sheet Form. Please allow a 4-6 week lead time on all custom automatic transmissions.

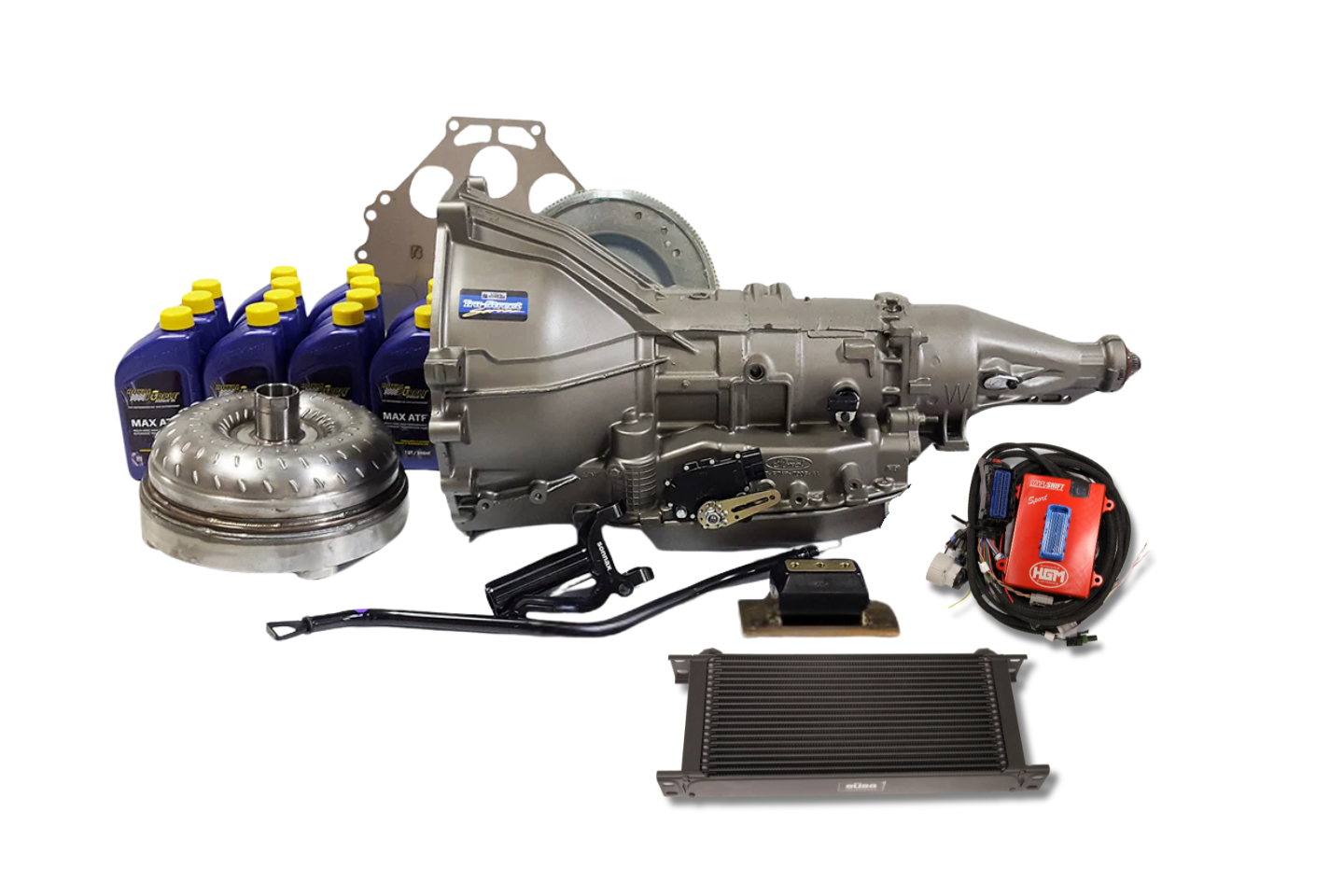

Package Includes:

• BOWLER 4R70W PERFORMANCE TRANSMISSION
• DESIGNED FOR SMALL BLOCK FORD MOTORS (DOES NOT FIT FE, BIG BLOCK, MODULAR OR COYOTE MOTORS)

* EXCELLENT FOR VEHICLES THAT ARE EQUIPPED WITH ENGINES PRODUCING UP TO 600 FT LBS OF TORQUE.

* DOES NOT INCLUDE DRIVESHAFT OR CROSSMEMBER.

Transmission Details:

• ALL NEW CLUTCHES, STEELS, SEALS & GASKETS
• ALL NEW OEM SOLENOID (EPC, TCC, PWM, SHIFT SOLENOIDS & MLP SENSOR)
• PRO SERIES WIDE OD BAND FOR ADDITIONAL SURFACE AREA
• NEW UPDATED SONNAX OD SERVO PISTON & PIN w/O-RING
• NEW UPDATED MOLDED 2-3 ACCUMULATOR PISTON
• INCREASED PRESSURE FOR IMPROVED CLUTCH LIFE
• RECALIBRATED VALVE BODY * FIRM SHIFT QUALITY, YET NOT TO HARSH. ABILITY TO HOLD EACH GEAR FOR MANUAL SHIFT CONTROL, WHILE RETAINING AUTOMATIC SHIFTS WHEN IN DRIVE & OVERDRIVE RANGE
• UPGRADED SONNAX DIRECT CLUTCH SYSTEM (FOR IMPROVED HOLDING POWER)
• UPDATED BYPASS VALVE
• UPDATED PRESSURE REGULATOR VALVE
• UPDATED STAINLESS STEEL SUN SHELL
• NEW TORRINGTON BEARINGS
• BETTER LUBRICATION SYSTEM
• UPDATED MECHANICAL DIODE INTERMEDIATE SPRAG
• 300M HARDENED INTERMEDIATE SHAFT
• ELECTRONIC SPEED SENSOR (IF MECHANICAL SPEEDOMETER IS NEEDED, PLEASE SPECIFY. ADDITIONAL CHARGES WILL APPLY)
• ALL NEW THRUST WASHERS
• NEW OEM STEEL PAN
• BILLET TRIPLE LOCK 265MM STALL CONVERTER WITH BRAISED FINS & BILLET APPLY PISTON (TRIPLE DISC LOCKUP)* STALL SPEED TO BE BUILT TO THE VEHICLE SPECIFICATIONS, OPTIONS RANGE FROM 2400 – 4500 STALL)
• COMPLETE BOWLER INSPECTED & DYNO TESTED
• 12 MONTH LIMITED / CONDITIONAL WARRANTY FROM DATE OF PURCHASE
• BOWLER DEPENDABILITY & DURABILITY
• NO CORE REQUIRED

INCLUDED ACCESSORY PACKAGE

• 14 Quarts ROYAL PURPLE MAX ATF TRANSMISSION FLUID
• SMALL BLOCK BLOCK PLATE
• SFI FLEXPLATE SHIPPED WITH 0 / NEUTRAL BALANCE UNLESS REQUESTED DIFFERENT (CAN BE ORDERED WITH 28 OR 50 OZ BALANCE)
• OEM FILL TUBE AND DIP STICK
• ENERGY SUSPENSION TRANSMISSION MOUNT
• SONNAX 1350 SERIES SLIP YOKE
• HAYDEN EXTERNAL TRANSMISSION COOLER W/ -6AN FITTINGS
• CONVERTER NUTS
• COMPUSHIFT CONTROLLER
