Bowler Tru-Street GM 700-R4 Transmission Package (Up to 400 lb-ft of Torque)

Product Description

Custom built to your specifications. Please complete our Automatic Transmission Tech Sheet Form.

Please allow a 4 week lead time on all custom automatic transmissions.

BOWLER TRU-STREET 700-R4 TRANSMISSION (For engines up to 400 Ft Lbs of Torque)

DESIGNED FOR SBC & BBC (NOT RECOMMENDED FOR LS OR LT MOTORS)

* CAN BE BUILT FOR 4X4 APPLICATIONS, PLEASE CONTACT US FOR DETAILS.

* DOES NOT INCLUDE FLEXPLATE, DRIVESHAFT OR CROSSMEMBER.

Transmission Details:

• ALL NEW CLUTCHES, STEELS, SEALS & GASKETS
• UPGRADED HIGH ENERGY FRICTION PLATES
• NEW OEM TYPE 9 TCC SOLENOID (SETUP FOR BOWLER LOCK-UP MODULE, BUT MODULE IS NOT INCLUDED)
• NEW LOW ROLLER SPRAG
• UPDATED 29 ELEMENT INPUT SPRAG
• HIGH ENERGY 2-4 BAND
• INCREASED PRESSURE FOR IMPROVED CLUTCH LIFE
• BLUE PRINTED VALVE BODY & PUMP
• UPDATED BOOST VALVE SYSTEM
• UPDATED SERVO
• HARDENED SUN SHELL
• BETTER LUBRICATION SYSTEM
• SETUP WITH A MECHANICAL DRIVE GEAR ON THE OUTPUT SHAFT. AN ELECTRONIC SPEEDOMETER CAN BE SETUP FOR ADDITIONAL COST.   * THIS TRANSMISSION DOES NOT INCLUDE THE SPEEDOMETER HOUSING OR DRIVEN GEAR (CAN BE PURCHASED SEPARATELY, WE WILL NEED YOUR TIRE SIZE AND GEAR RATIO.
• ALL NEW TORRINGTON BEARINGS
• COMPLETE BOWLER INSPECTED & DYNO TESTED
• 24 MONTH LIMITED / CONDITIONAL WARRANTY FROM PURCHASE DATE
• BOWLER DEPENDABILITY & DURABILITY
• NO CORE REQUIRED

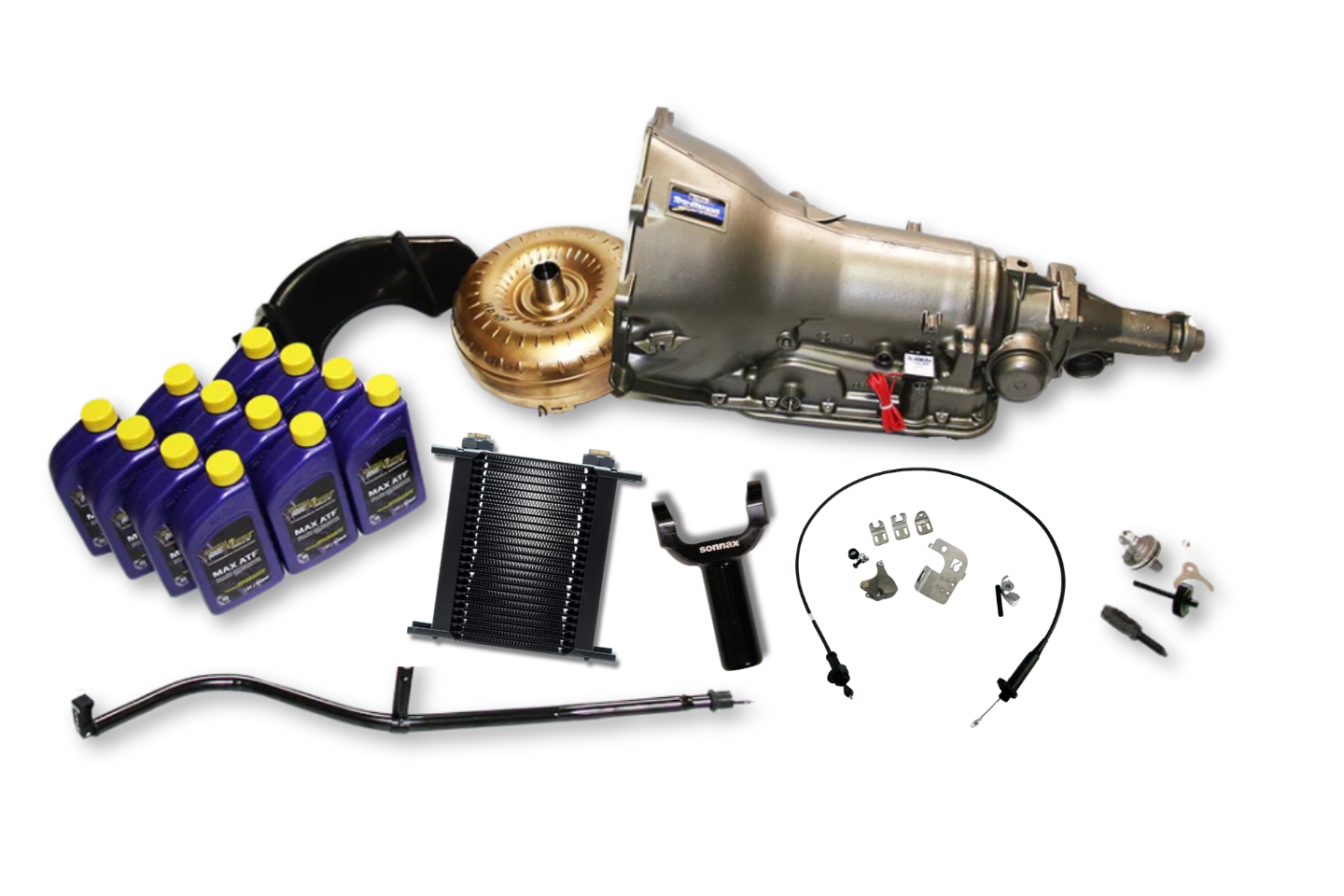

TRU-STREET ACCESSORY PACKAGE INCLUDES:

• 1800 - 2000 STALL LOCK UP CONVERTER WITH BRAISED FINS (SINGLE DISC LOCKUP)
• BOWLER TRU-SHIFT THROTTLE CORRECTION SYSTEM (MUST SPECIFY CARB TYPE)
• BOWLER LOCK-UP MODULE & BRAKE SWITCH
• OE STYLE FILL TUBE AND INDICATOR
• HAYDEN TRU-COOL EXTERNAL COOLER
• -6AN COOLER FITTINGS ON TRANSMISSION & COOLER
• 12 QUARTS ROYAL PURPLE MAX ATF FLUID
• SONNAX 1350 SERIES SLIP YOKE
• ENERGY SUSPENSION TRANSMISSION MOUNT
• PLASTIC UNIVERSAL FLEXPLATE COVER
• MECHANCIAL SPEEDOMETER HOUSING AND GEARS (MUST SPECIFY REAR TIRE DIAMETER AND GEAR RATIO
