GM 700-R4 Transmission Package (Up to 450 lb-ft of Torque)

Product Description Custom built to your specifications. Please complete our Automatic Transmission Tech Sheet Form.

Please allow a 6-8 week lead time on all custom automatic transmissions.

BOWLER CUSTOM 700-R4 TRANSMISSION (For engines up to 450 Ft Lbs of Torque)

DESIGNED FOR SBC & BBC (NOT RECOMMENDED FOR LS OR LT MOTORS)

* CAN BE BUILT FOR 4X4 APPLICATIONS, PLEASE CONTACT US FOR DETAILS.

* DOES NOT INCLUDE FLEXPLATE, DRIVESHAFT OR CROSSMEMBER.

Transmission Details:

• ALL HIGH ENERGY CLUTCHES, STEELS, SEALS & GASKETS
• NEW OEM TCC SOLENOID, 4TH GEAR PRESSURE SWITCH & INTERNAL WIRING HARNESS
• NEW SPRAGS
• NEW GOVERNOR SYSTEM
• NEW PREMIUM WIDE 2-4 BAND (INCREASED SURFACE AREA FOR 2ND & 4TH GEAR)
• NEW OEM BAND DRUM
• SONNAX CORVETTE SERVO w/D-RING SEAL DESIGN FOR IMPROVED APPLY POWER FOR 2ND GEAR
• SONNAX BILLET 4TH GEAR SERVO
• INCREASED PRESSURE FOR IMPROVED CLUTCH LIFE
• RECALIBRATED VALVE BODY * FIRM SHIFT QUALITY, YET NOT TO HARSH. ABILITY TO HOLD EACH GEAR FOR MANUAL SHIFT CONTROL, WHILE RETAINING AUTOMATIC SHIFTS WHEN IN DRIVE & OVERDRIVE RANGE
• STEEL SLEEVE IN INPUT DRUM FOR IMPROVED STRENGTH
• HIGH REV 5500 + RPM HARDENED PUMP RINGS
• SONNAX SMART SHELL HARDENED SUN SHELL W/BEARING
• UPDATED SONNAX SERVO RELEASE SYSTEM
• ALL NEW TORRINGTON BEARINGS
• BETTER LUBRICATION SYSTEM
• NEW OEM STEEL PAN
• SETUP WITH A MECHANICAL DRIVE GEAR ON THE OUTPUT SHAFT. AN ELECTRONIC SPEEDOMETER CAN BE SETUP FOR ADDITIONAL COST.   * THIS TRANSMISSION DOES NOT INCLUDE THE SPEEDOMETER HOUSING OR DRIVEN GEAR (CAN BE PURCHASED SEPARATELY, WE WILL NEED YOUR TIRE SIZE AND GEAR RATIO.
• COMPLETE BOWLER INSPECTED & DYNO TESTED
• 12 MONTH LIMITED / CONDITIONAL WARRANTY FROM PURCHASE DATE
• BOWLER DEPENDABLE PERFORMANCE & DURABILITY
• NO CORE REQUIRED

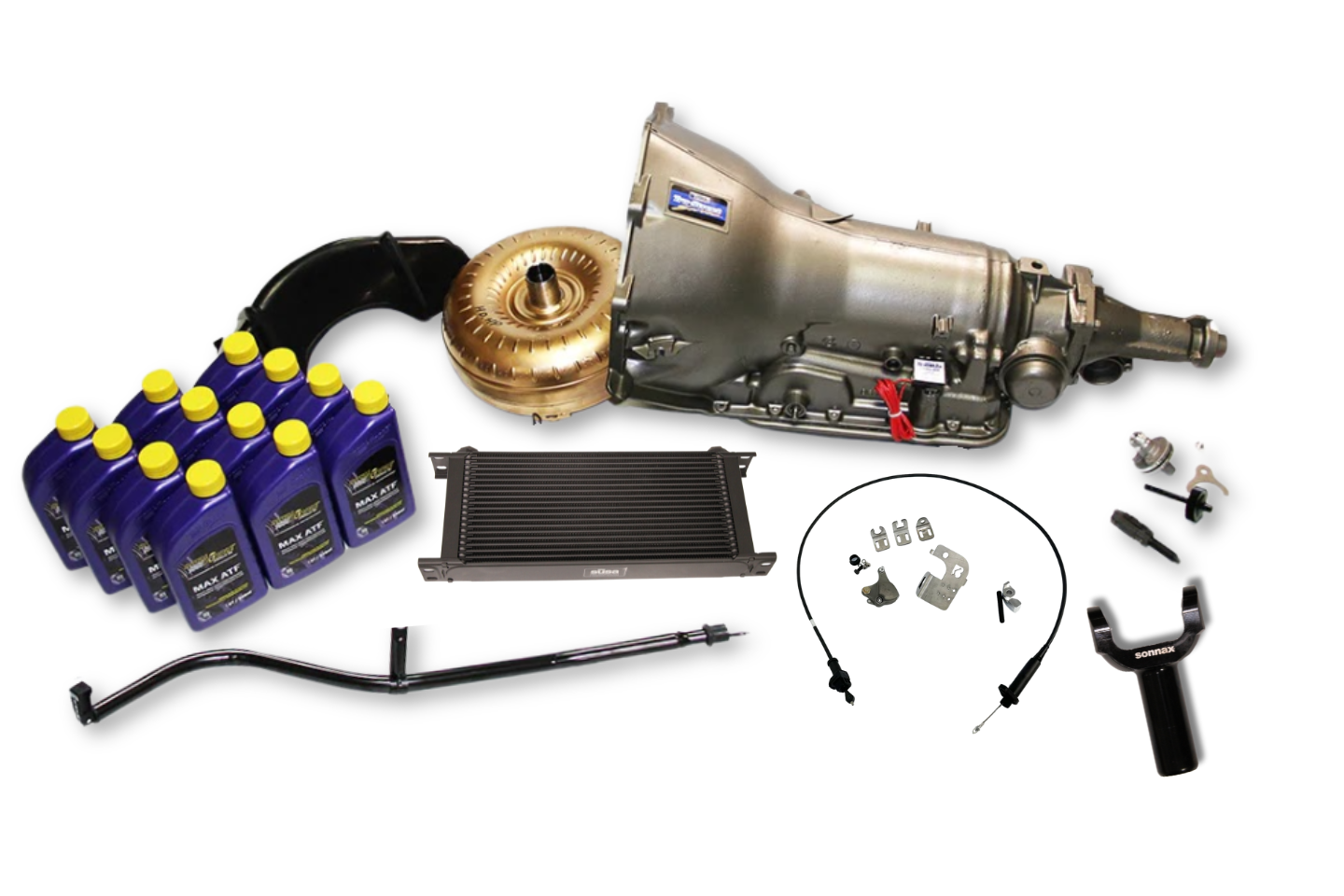

INCLUDED ACCESSORY PACKAGE

• 1800 - 2000 STALL LOCK UP CONVERTER WITH BRAISED FINS (SINGLE DISC LOCKUP)
• BOWLER TRU-SHIFT THROTTLE CORRECTION SYSTEM (MUST SPECIFY CARB TYPE)
• BOWLER LOCK-UP MODULE & BRAKE SWITCH
• OE STYLE FILL TUBE AND INDICATOR
• HAYDEN TRU-COOL EXTERNAL COOLER
• -6AN COOLER FITTINGS ON TRANSMISSION & COOLER
• 12 QUARTS ROYAL PURPLE MAX ATF FLUID
• SONNAX 1350 SERIES SLIP YOKE
• ENERGY SUSPENSION TRANSMISSION MOUNT
• PLASTIC UNIVERSAL FLEXPLATE COVER
• MECHANICAL SPEEDOMETER HOUSING AND GEARS (MUST SPECIFY REAR TIRE DIAMETER AND GEAR RATIO

Install Guide
