GM T-56 Magnum TUET11009 with Bowler Carbon upgrade LS Engine, up to 850 ft/lb

Upgraded Carbon Edition T-56 Magnum Transmission Package for improved shifting and power handling.  Will handle light race use for the occasional autocross or road course event.  If you're building a race specific set up we have another package option that will better suit your needs.

Use with LS Engines (will work with all 6 or 8 bolt crank LS and LT engines)  This package is not vehicle specific.  We also carry model specific crossmembers and hydraulic master cylinder conversions if needed.

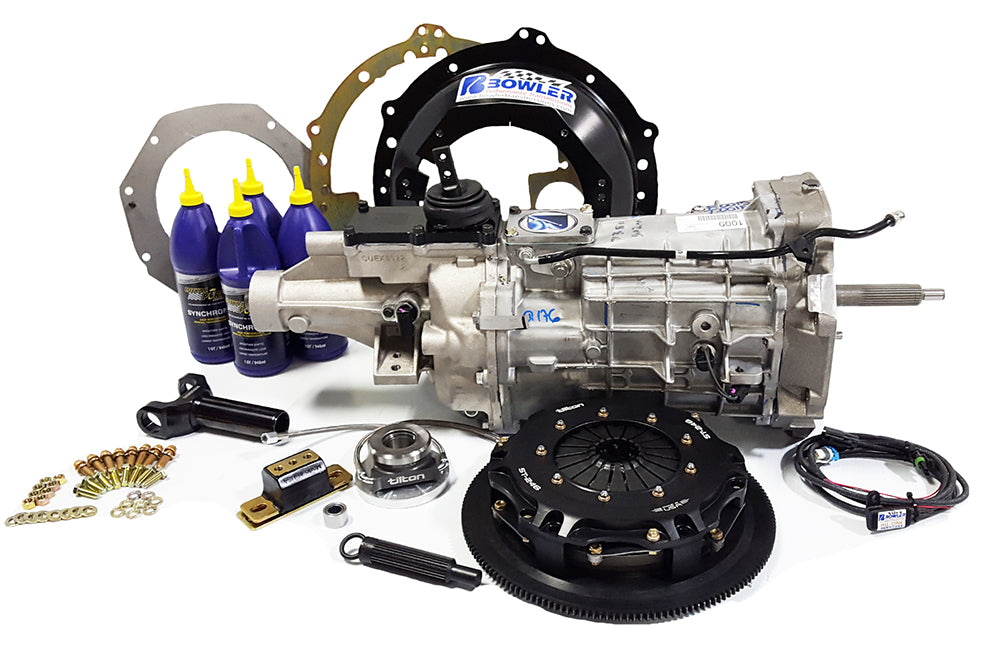

Package Includes:

- T-56 Magnum TUET11009 Six Speed Transmission with Bowler Carbon edition upgrades. This upgrade package allows for higher RPM shift points under heavy torque loads, it's the perfect solution for any serious track car.
- Ratios 2.66, 1.78,1.30,1.00,.80,.63
- Upgrades include:

• Updated 2nd Gear Design
• Updated 1-2 Synchronizer Hub Design
• New Full Carbon Blocker Ring Set 1st and 2nd Position
• New Carbon / Hybrid Blocker Ring Set 3rd, 4th, 5th, 6th & Reverse Position
• Vespel Fork Pads

- Bowler NightStick replacement shifter
- Quicktime RM-8019 Bell Housing and required hardware
- Tilton 6000 series Throwout Bearing w/ -4AN Inlet and Remote Bleeder
- Tilton ST-246 Twin disc clutch kit with spring hub discs and all required hardware, will handle up to 850 lb.-ft. of engine torque.
- Billet 31 Spline 1350 Series Slip Yoke
- Dial indicator plate for concentric bellhousing alignment
- All-In-One Harness with Reverse Lock-Out Control Module (with GM 40 Pulse per Revolution Speedometer Output, will work with all Connect and Cruise GM motors)
- Energy Suspension Mount
- 4 Quarts of Royal Purple Synchromax Fluid
- Roller pilot bearing
- 12 Month Warranty

Instructions

Tremec TKO & T-56 Installation Instructions
