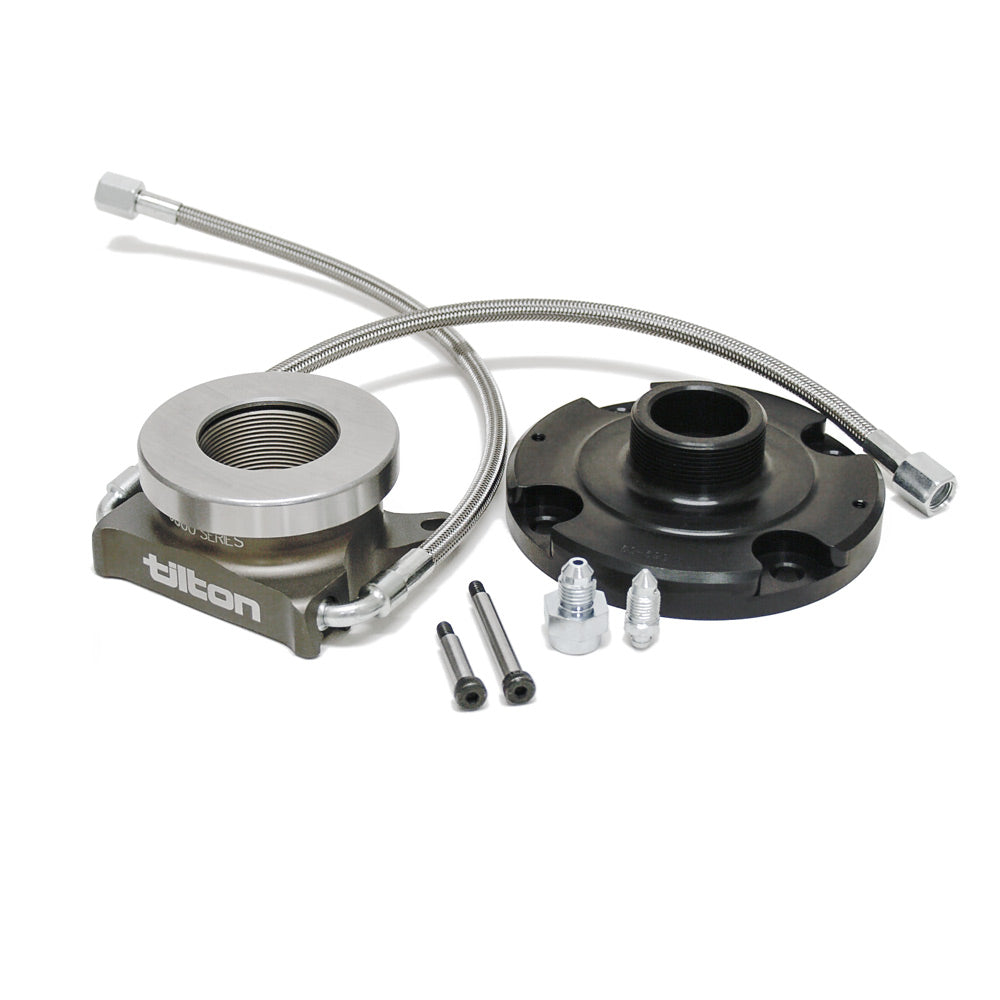

Tilton Adjustable Hydraulic Throw-Out Bearing (GM TKX, TKO 500/600)

Tilton adjustable hydraulic throw-out bearing for GM TREMEC TKX, TKO 500/600 when using with an aluminum bellhousing behind a GM small block or big block engine.

*installation will require replacing the OE TREMEC input shaft bearing retainer.  Please see instructions link below for more information.

Features

• Billet aluminum body and piston precision machined at Tilton
• High temperature mono seal design features a quad tensioner to ensure proper seal tension and the highest reliability
• Constant contact design self adjusts for clutch wear and maintains the same pedal feel throughout the clutch's life
• Newly designed swivel fittings have been thoroughly tested to insure against leakage
• High-quality flat face bearing with 1.71" - 3.03" contact diameter fits most 8.5" - 11" bent-finger and lever-type clutches

• Hydraulic release bearing, threaded bearing retainer, steel braided supply and bleed lines.

• GM
• Tremec TKX, TKO 500/600
• 8.5" - 11.0" bent-finger and lever-type clutch (most)
• Recommend using minimum 3/4" bore master cylinder with 1.4 " stroke.

INSTALLATION INSTRUCTIONS
